Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Name: Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need
Brand: TATATO
Price: 1 USD

Brand Name : TATATO

Model Number : TA-T06

Certification : Rohs, Reach

Place of Origin : China

MOQ : 1000 Kilogram/Kilograms

Price : Negotiable

Supply Ability : 50 Ton/Tons per Day

Packaging Details : Wooden pallet

Grade : 3000 Series

Shape : Round

Surface Treatment : Mill Finished

Length : in coil or cut in straight

Usage : Vehicle tubing

Hardness : H12, H14 or as per customer need

Alloy Or Not : Is Alloy

Temper : O - H112

Al (Min) : 96.8%-97.8%

Wall Thickness : 1.0-1.6mm

Processing : Extrution, Drawing, Annealing

Port : Shanghai

Contact Now

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Product Description

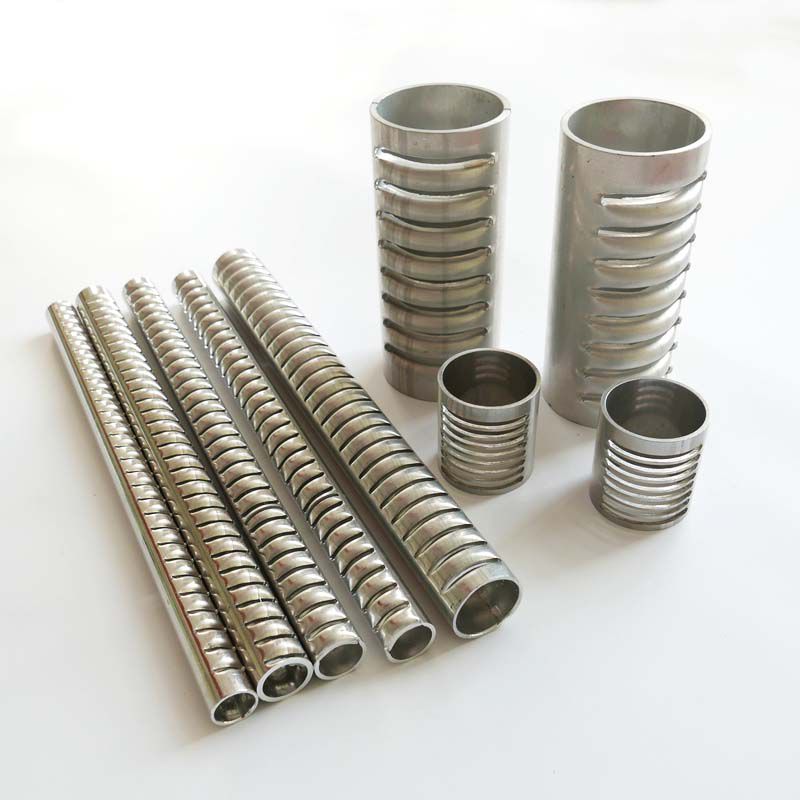

Aluminum alloy seamless collector tube(base material is 3003 or 6063). The brazing material is 4045 or 4343 and the thickness is 5%-10% of the total wall thickness. It has the characteristics of uniform welding layer, high anti-blasting pressure and stable welding quality of heat exchanger.

Alloy	Specification(mm)
Base material:3003 or 6063	OD:φ8-φ33.3
Brazing layer:4343 or 4045	Thickness:1.0~1.6

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Chemical Composition

Chemical Composition(weight %)
	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al

3003	0.6	0.7	0.05~0.20	1.0~1.5	-	-	0.1	-	Balance

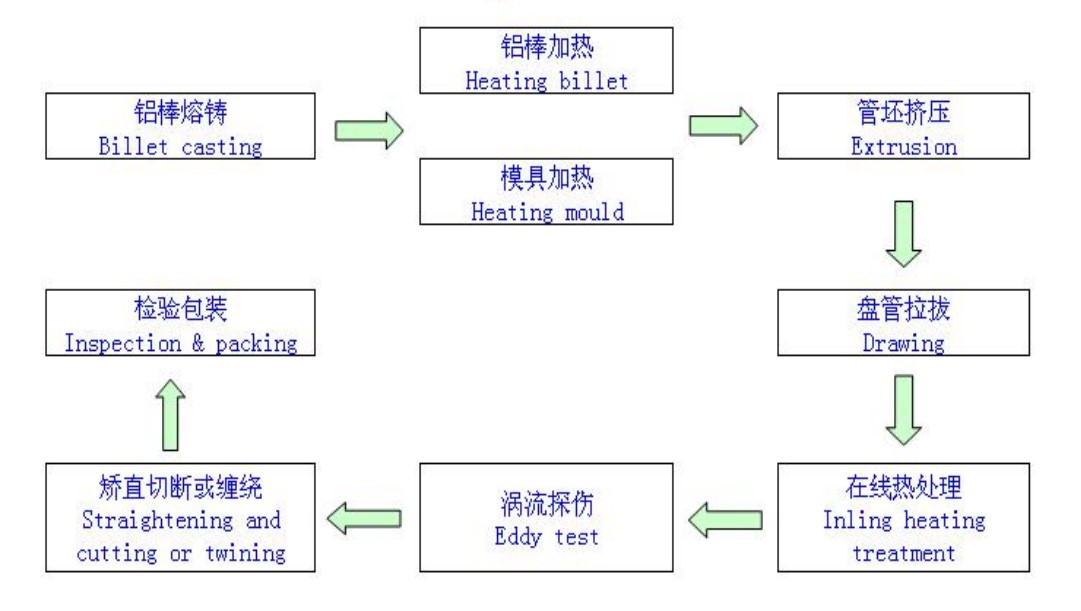

Production Process

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

TAITONG REFRIGERATION with over years develpment of the parts and

components for refrigeraton. now becoming the biggest professional manufactuer

for evaproators , condensers and all type of the pipe system for refrigerators

in the fifth place in comprehensive ranking among the industry of the same kind.

Nearly 100,000 saqure meters

More than 1000 emplyees

Manage own brand TATATO

Obtain 100 patents

ISO9001-2008,ISO14001-2004 certificated

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Quanlity control

The central laboratory is equipped with the device which made by the world's top manufacturer.

They can carry out the test such as :the product composition analysis, mechanical performanceanalysis,

metallographic analysis, environmental simulation, heat test, testing analysis, corrosionanalysis, project.

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Workshop

Cooperation customer

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need

Packing &Shipping

TATATO showcase

Vehicle 3003 Aluminum Tubing Extrution Drawing H12 H14 Or As Per Customer Need
